Premium Non-Combustible Cladding Systems for Western Australia

At XLine Construction, we proudly offer a curated range of non-combustible aluminium facade systems that meet Australia’s strict fire safety regulations. Each product is chosen for its proven performance, architectural flexibility, and compatibility with Western Australia’s climate and building codes.

ULTRACORE IQ

  • ULTRACORE IQ is a next-generation solid aluminium panel featuring a 100% non-combustible core. It's ideal for high-performance commercial applications where fire compliance, strength, and clean architectural lines are essential.

    • Fire Compliance: AS 1530.1, AS 1530.3, AS 5113, BS 8414

    • Core: Solid aluminium (no polyethylene)

    • Folding Durability: Excellent V-groove strength and crack resistance

    • Thermal Conductivity: ~160–180 W/mK

    • Fixing System: Cassette system or direct fix

    • Weight: ~7.5–8.0 kg/m²

    • Sustainability: Fully recyclable, low VOC production

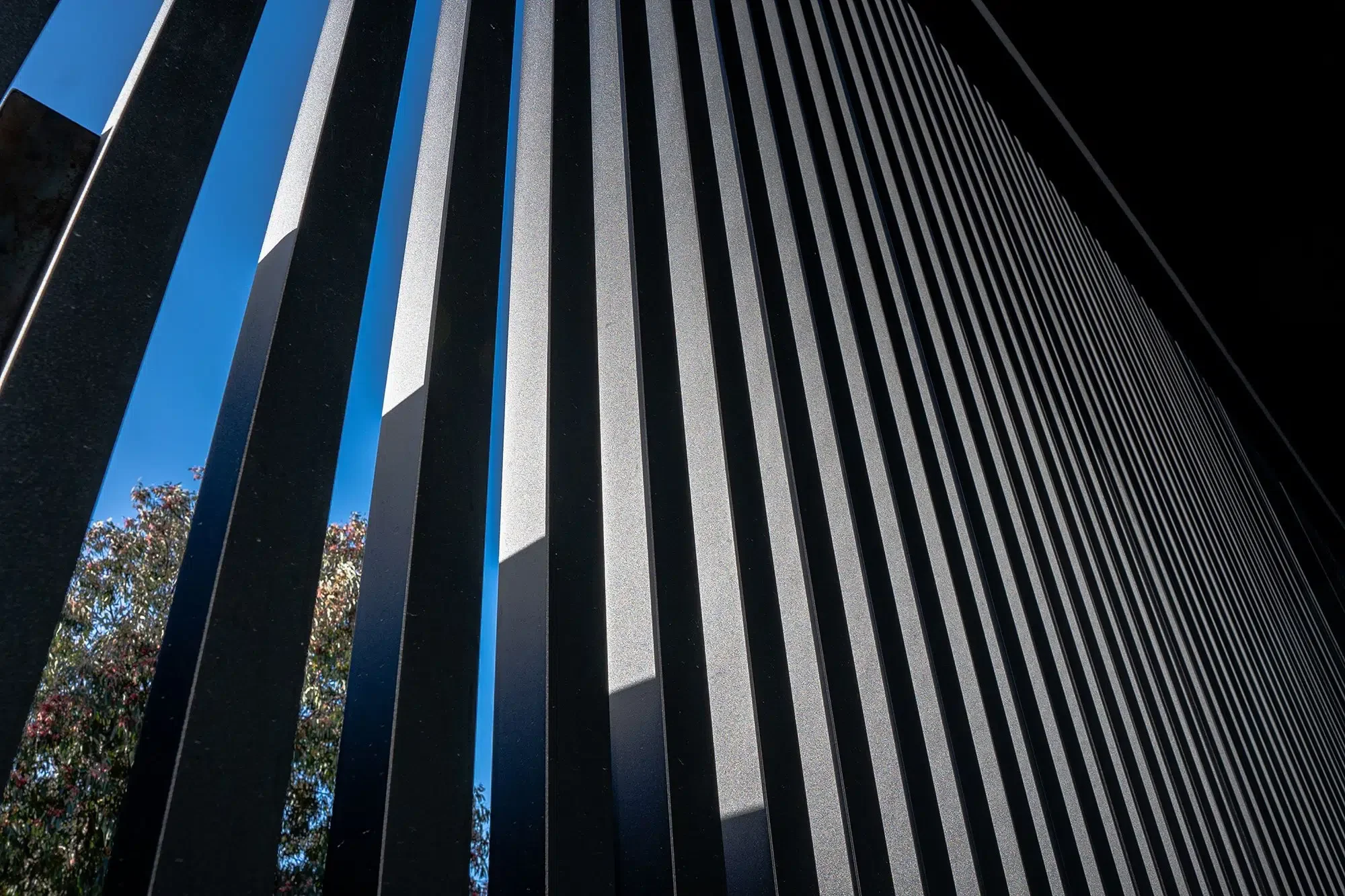

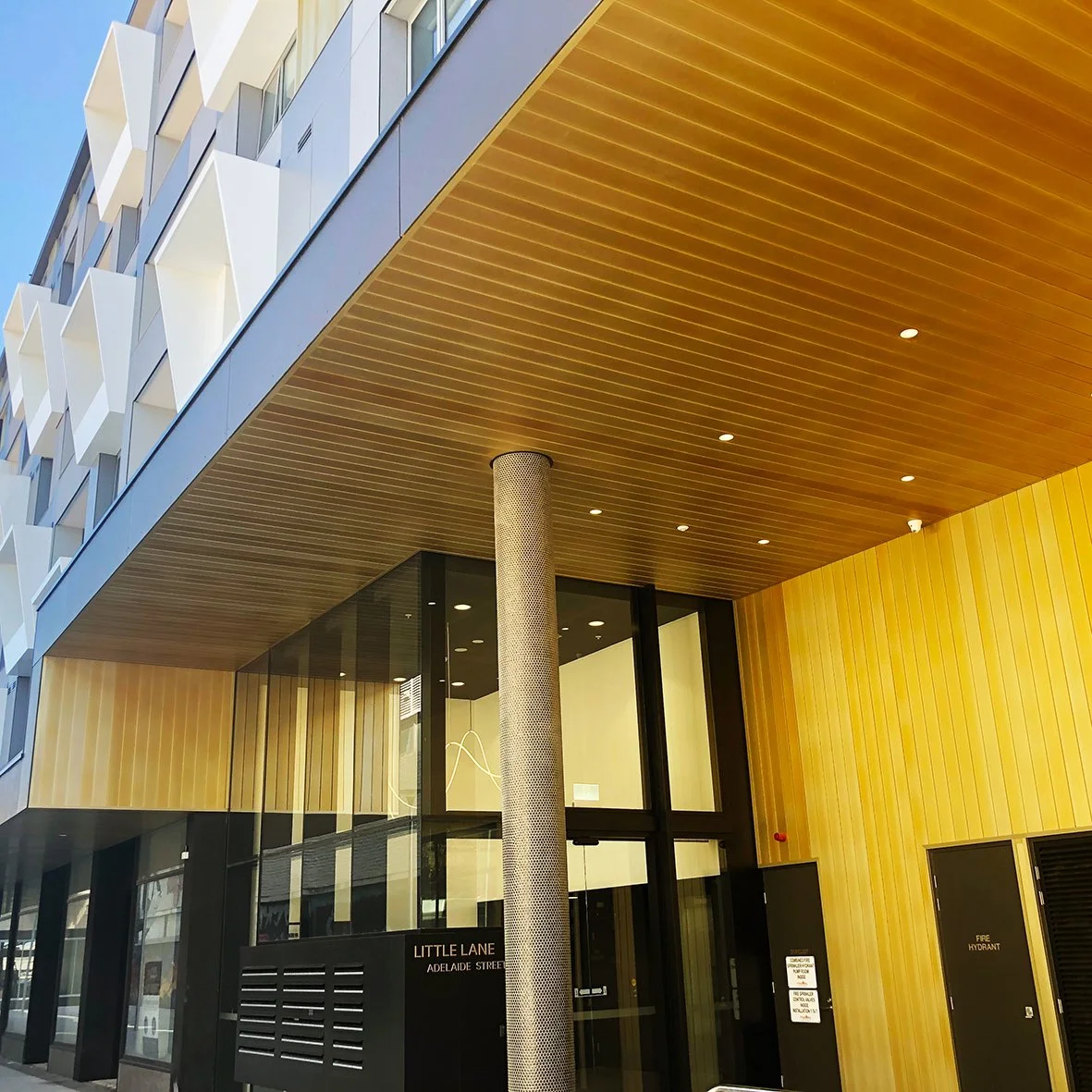

ULTRALIGN Battens

  • ULTRALIGN extruded aluminium battens system is available in a range of solid aluminium profiles providing a reliable and attractive modern facade alternative to other commercial cladding products.

    • Fire Compliance: AS 1530.1 Non-Combustible

    • 100% Recyclable

    • 2-Piece Installation: a simple 2-piece clip-together mounting system with inbuilt screw flutes for secret fixing and structural integrity

    • 6 Different sizes

    • Prefinished system

    • 100% Australian Made

    • Custom Designs

ULTRALIGN Cladding

  • ULTRALIGN products have been specifically designed by experienced commercial facade professionals to meet the demands of today’s facade industry. Australian made using the finest raw materials and finish options, ULTRALIGN offers an unprecedented level of quality, reliability, and longevity with an extensive range of colours, textures, and finish options, available in both standard and custom sizes.

    • Fire Compliance: AS 1530.1 Non-Combustible

    • 100% Recyclable

    • Intelligent Installation: Multi-angle mating and has double swarf-free contact points for superior consistency and weatherproofing

    • Minimal Fabrication

    • Prefinished system

    • 100% Australian Made

    • Complete System: ULTRALIGN is supplied with a complete range of matching trims called CLADTRIM. These cater for all common details and junction types such as starter strip, cover strip, edge trim and corner profiles.

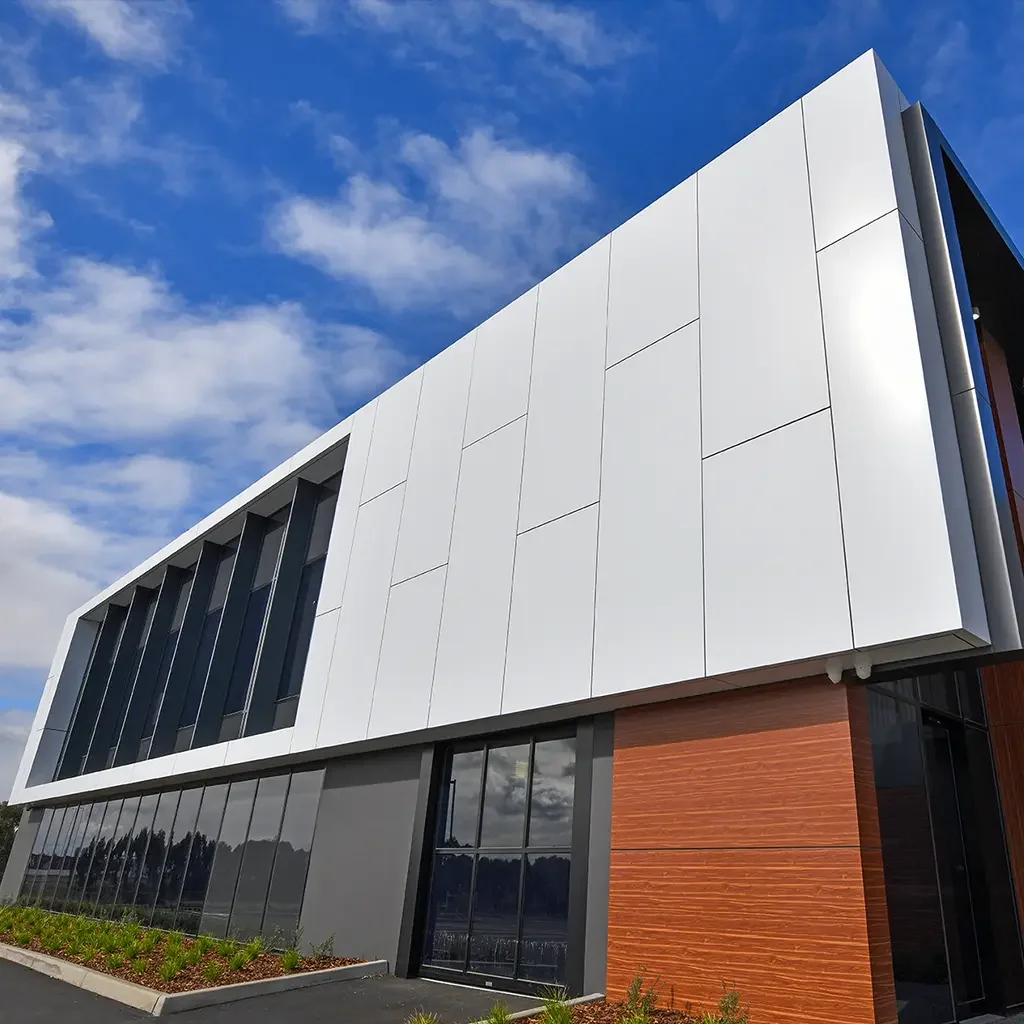

Mondoclad

  • Engineered for the Australian environment, Mondoclad is a PVDF-finished, solid aluminium cladding system. It delivers a premium architectural finish, UV stability, and fire safety performance.

    • Fire Rated: AS 1530.1 & AS 1530.3 compliant

    • Core: 100% aluminium, zero polyethylene

    • V-Groove Performance: Durable and smooth folds

    • Thermal Conductivity: ~160 W/mK

    • Fixing Method: Rout-and-return or face-fix systems

    • Weight: ~8.0 kg/m²

    • Sustainability: Recyclable, low-carbon production

Alpolic NC (Mitsubishi)

  • Alpolic NC from Mitsubishi is a premium-grade mineral core panel offering superior fire resistance and durability. Ideal for high-rise, commercial, and institutional projects requiring a high-end finish.

    • Fire Tested: AS 1530.1, AS 5113, BS 8414

    • Core: Non-combustible mineral, zero PE

    • Folding Strength: Reinforced for clean fabrication

    • Thermal Conductivity: ~0.45 W/mK

    • Installation: Cassette or direct-fix

    • Weight: ~7.6 kg/m²

    • Sustainability: ISO-certified manufacturing, recyclable

Aodeli NCP

  • Aodeli NCP provides a balance between cost-efficiency and compliance. It’s widely used for recladding, commercial upgrades, and large-scale builds.

    • Compliance: AS 1530.1, AS 5113, BS 8414

    • Core: Non-combustible mineral core

    • Fold Quality: Clean V-groove lines

    • Thermal Conductivity: ~0.45–0.60 W/mK

    • Fixing System: Cassette or face-fix over standard subframe

    • Weight: ~7.5–8.5 kg/m²

    • Sustainability: High recyclability and energy-efficient production

ProClad Solid

  • ProClad Solid is engineered for modern commercial and public sector builds, where strength, safety, and aesthetic impact are priorities. Its solid aluminium build ensures long-term performance and design flexibility.

    • Fire Certification: AS 1530.1, AS 1530.3, AS 5113

    • Core: 100% aluminium, non-combustible

    • Groove Durability: Withstands deep folds without distortion

    • Thermal Conductivity: ~160–180 W/mK

    • Mounting System: Cassette or exposed fixing

    • Weight: ~8.0 kg/m²

    • Carbon Profile: Low environmental impact, recyclable

Vitracore G2 & Vitraduel

  • Vitracore G2 and Vitradual are both trusted for high-rise and large-scale construction. G2 offers a lightweight aluminium core, while Vitradual is a solid aluminium solution for maximum durability.

    • Fire Compliance: AS 1530.1, AS 5113, BS 8414

    • Core: G2: Aluminium core | Vitradual: Solid aluminium

    • Folding Durability: Suitable for detailed architectural designs

    • Thermal Conductivity: G2: ~1.2–1.8 W/mK | Vitradual: ~160 W/mK

    • Fixing System: Cassette or flat sheet installation

    • Weight: G2: ~7.0 kg/m² | Vitradual: ~8.0 kg/m²

    • Sustainability: Lightweight transport footprint, recyclable materials

ZINTL

  • ZINTL® is an exceptional range of fire-resistant aluminium interlocking panels, offering versatile and non-combustible cladding solutions for many construction needs.

    Embodying timeless elegance with enduring materials, ZINTL® interlocking panels meet stringent safety and performance standards: certified to C2D10 (6) (e) and tested to AS1530.1, satisfying both F3P1 Performance Requirements and F3V1 Verification Method as per AS4284 assessments.

    • Tested to AS4284 (Weatherproofing) and meets the F3P1 Performance Requirement, and F3V1 Verification Method

    • Tested to AS1530.1 and AS1530.3

    • Well suited for high traffic areas and coastal properties

    • 100% recyclable and an excellent choice in terms of sustainability

    • Corrosion resistant

    • Will not oxidise over time

    • 15-year Colour and 25-year Film Warranty

    • External cladding that is versatile and non-combustible

    • Australian Made and Owned®

Nucleo

  • Nucleo® is made with two external layers of aluminium sheeting and a profiled aluminium core bonded together to create a lightweight and ultra-flat panel.Nucleo®’s panels are remarkably light and balanced. This design offers a unique blend of sleekness and strength.

    • Nucleo® is deemed non-combustible

    • Light weight and rigid

    • Ultra flat

    • Custom sizes, colours and finishes available for large projects

    • 15-Year Warranty

    • Global GreenTag certified

    • CodeMark certified

    • PVDF finish, excellent UV stability and colour retention

    • Made from high quality marine-grade Aluminium 5052

    • Easy to fabricate

    • Stocked locally

    • Technical and sales support

    • Competitively priced

    • 100% recyclable

ALUCOBOND

  • ALUCOBOND® PLUS stands as the benchmark in the aluminium composite panel market, known for external cladding that is both light and rigid, offering unmatched weather resistance. Noted for its superior finish and flatness, ALUCOBOND® PLUS offers a dynamic range of over 50 stocked colours, granting architects complete creative freedom. Its versatility enables it to be bent, curved, and shaped, accommodating the most ambitious architectural designs.

    • High formability

    • Weather resistant

    • Durable

    • High formability and stability

    • Full manufacturer’s warranty

    • Stocked and distributed locally

    • More cost-effective than pure metals

    • Diversity of brilliant colours

    • Individual design and easy processing

    • 5005 Marine grade alloy

    • Lightweight and large panel sizes

    • Applied coil coated Fluoropolymer (PVDF or FEVE) paint finish

    • Environmental Product Declaration (EPD) - European Manufacture Supplied

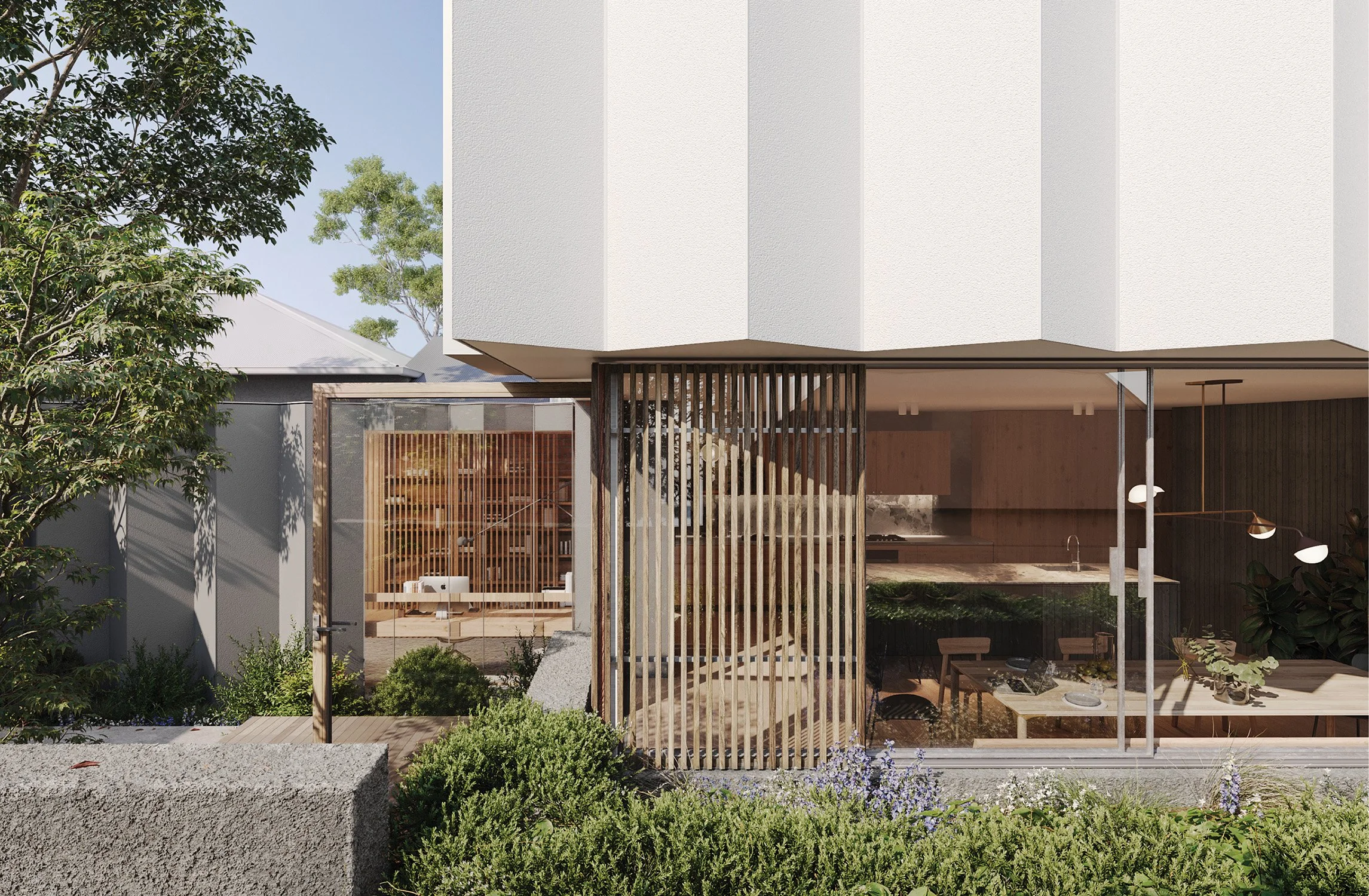

James Hardie - External Cladding Solutions

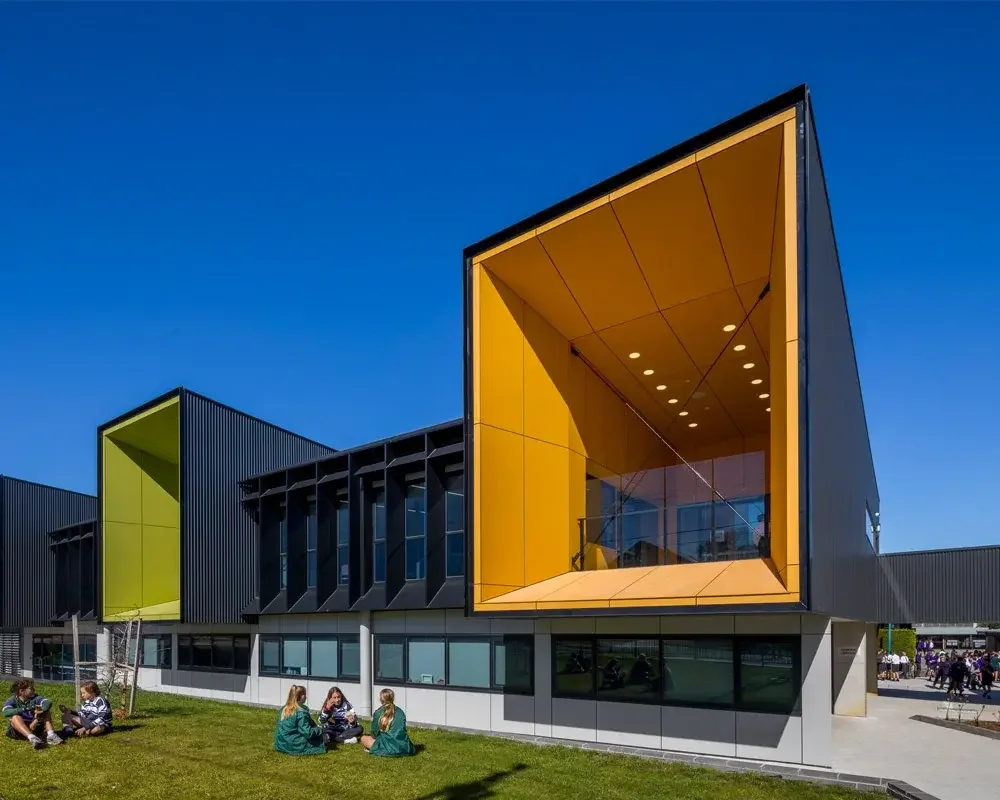

James Hardie - ExoTec

  • ExoTec™ Facade Panel provides a durable, expressed joint panel appearance for building facades and fascias and, together with the ExoTec™ fixing system, offers versatility to architects and builders. ExoTec™ Facade Panels provide a durable, expressed joint panel appearance for building facades and fascias. The proprietary fixing system makes installation fast and cost-effective.

    A variety of design styles can be created including curved walls, panels installed upright vertically, horizontally or in a brick pattern. For a custom look, it can be painted on-site with a wide range of acrylic textures or factory finished off-site in polyurethane or metallic colours.

    • Ideal for use on high-rise buildings exposed to high wind pressure and other weather elements

    • Panels are sealed on all sides

    • Fire resistant - adheres to bushfire attack level requirements of BAL40

    • Resistant to termite damage and moisture damage

    • 15-year product warranty

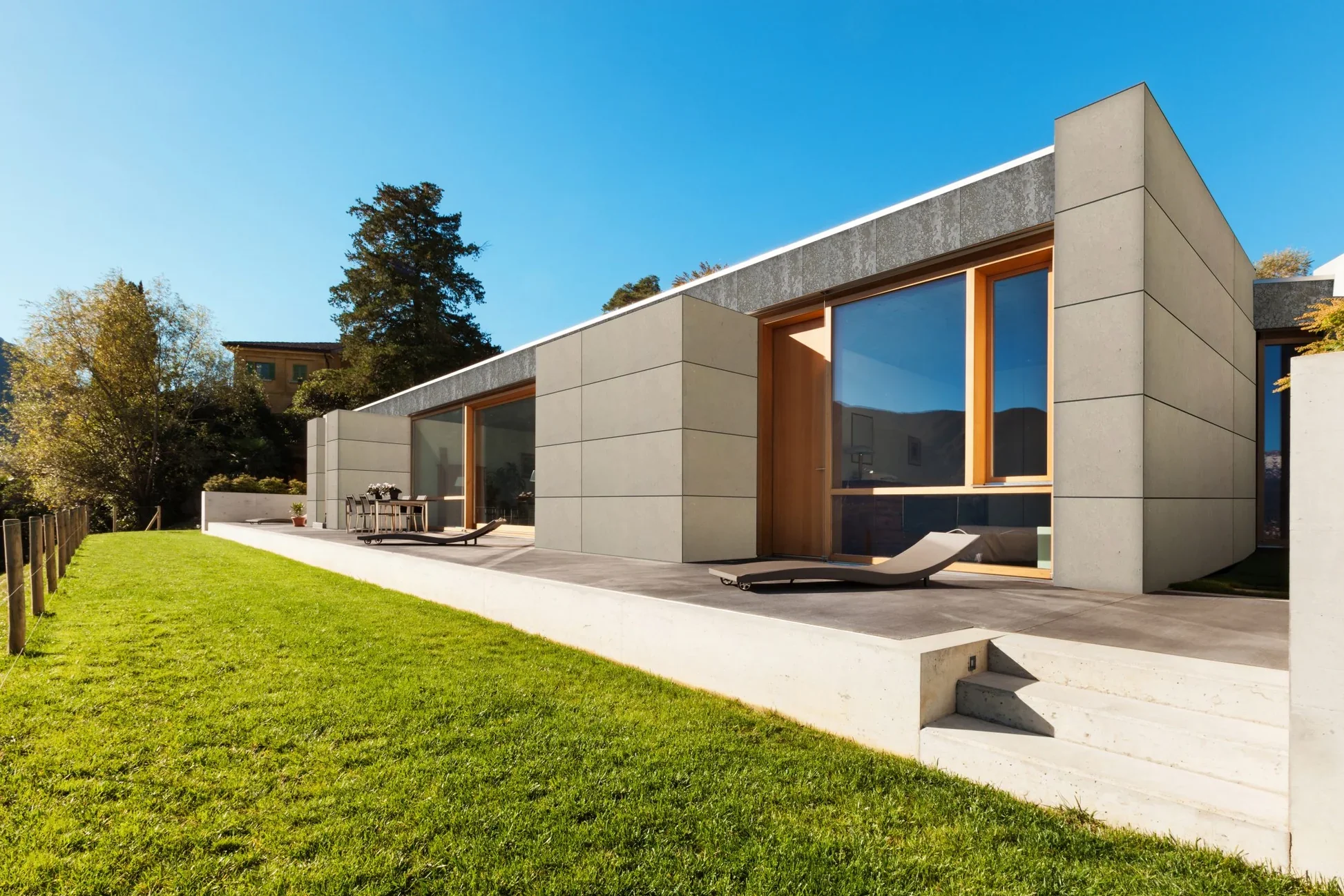

Duracom

  • Duracom® facade fibre cement sheet is ideal for creating exterior cladding systems in low-to-medium rise buildings.

    With its smooth, flat surface and square-edge finish, and utilising Innova™’s trusted fibre cement-coated compressed sheeting, Duracom® delivers a strikingly modern, durable finish.

    Lightweight yet exceptionally resilient, Duracom® façade system is perfect for expressed jointing and a variety of finishes – from painted to textured coatings.

    • Fully sealed, balanced panels won’t rot, burn or corrode

    • Allows easy decoration in a range of design finishes

    • Rapid installation

    • Complies with BAL40 as required in AS3959:2018 – Construction of buildings in bushfire-prone areas
